Hard Disk Imaging Tool: Data Compass

February 26th, 2013

data-compass-salvationdata Data Compass is a hard disk imaging tool from Salvationdata data recovery built to extract data from faulty hard drives, such as multiple bad sectors, damaged surfaces, malfunctioning head assembly, or corrupted servo info. Data recovery from physically damaged HDDs is what Data Compass designed for.

What can Data Compass do?

Data recovery from HDDs with severe multiple BAD sectors, which appear because of platter surface scratch or malfunction or instability of the magnetic head assembly (MHA).

  • Data recovery from HDDs that start to produce "clicking" sounds, which may be caused by corruption of sector servo labels or a MHA malfunction;
  • Recover undetected drives: WD ROYL firmware loading from either primary head or secondary head, you don’t need to change head when there’s head damage but to recover the data directly with Data Compass;
  • Logical analysis of FAT,NTFS,HFS,HFX,HFS+,EXT2,EXT3 file systems in the software complex allows data recovery from all brands of hard drives and flash drives in cases;
  • When used with malfunctioning drives, Data Compass complex often allows selective extraction of necessary data to your customers without reading all data from a drive ("recover data by file" without creating a complete disk image) saving a lot of time;

Newly Upgraded Data Compass To Version 10.0

SalvationDATA has upgraded Data Compass from version 9.96 to 10.0 with new features added. The following are the detail of new features´╝Ü

i . Compatible with Windows XP/VISTA/7 64-bit edition;
ii. Support FAT16/32 file system for extra-large 4KB/sector and more than 255 sectors /cluster etc;
iii. Edit LBA volume;
iV. Fix bug of Memory leaking when scanning NTFS files;
V. Optimize Files search engine;
Vi. Selective function for Installing Shadow Disk Drive;

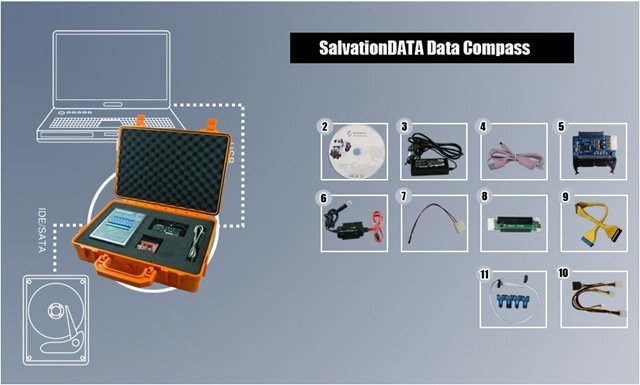

Data Compass Packing:

1.Data Compass Console;
2.Data Compass Software;
3. AC Adaptor;
4. PC-Console USB Cable;
5. SATA-IDE Adaptor;
6. SATA Cable;
7. USB to SATA & IDE Adaptor;
8. Extra Power Cable for USB to SATA & IDE Adaptor;
9. 2.5" to 3.5" IDE Adaptor;
10. SATA Power Cable;
11. IDE Cable;
12. Power Cable;
13. User Manual;
14. Twelve months full technical support (phone, email, MSN and remote assistance);
15. Access to online forum;
16. Access to database with firmware modules and BOOT;
17. Total free software upgrade;

data-compassHard Disk Imaging Tool: Data Compass

Data Compass Premium Vs Standard:

1. Extra ability of raid data recovery was added;

Include both the SNIA (Storage Networking Industry Association) Common RAID Disk Data Format Specification Revision 01.00.00 Compatible RAID 0, RAID 5, RAID 5E and RAID 5EE and the SNIA (Storage Networking Industry Association) Common RAID Disk Data Format Specification Revision 01.00.00 Incompatible RAID 0, RAID 5, RAID 5E and RAID 5EE

2. An opportunity to import the image of the segment disks for analysis.

Website: http://www.salvationdata.com/data-recovery-equipment/data-compass.htm
