Reading/Writing Serial Flash ROM on Western Digital PCB Boards

July 18th, 2012

Method for Reading/Writing serial flash ROM on Western Digital PCB Logic Boards… Tested on:

2060-001159-006 REV A
2060-701292-000 REV A
2060-001293-001 REV A
2060-701335-005 REV A

Note: Method not work with “Mammoth” boards.

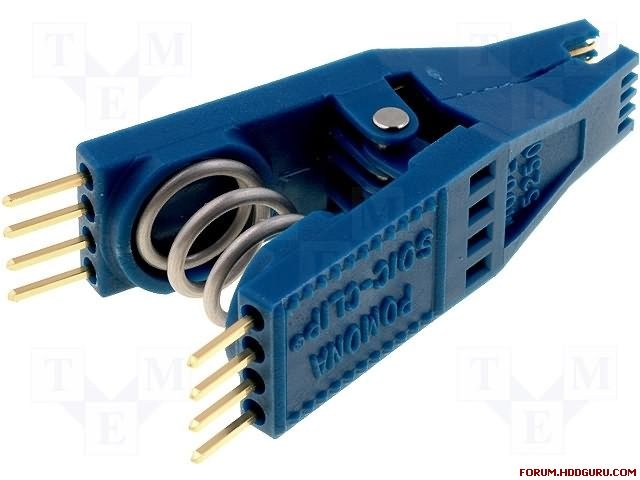

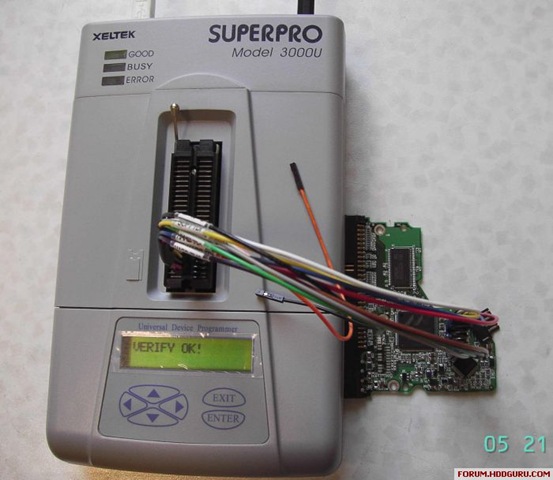

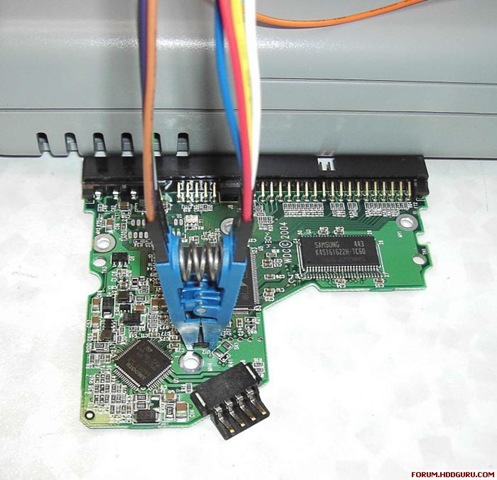

flash-rom-wd-pcbflash-rom-wd-pcb-2flash-rom-wd-pcb-3

WD Scorpio PSV Mode:

WD-Scorpio-PSV-Mode
