RAID Array Failures & Recovery

July 30th, 2011 Comments off

RAID Arrays Failures & RecoveryA hardware RAID implementation requires at minimum a RAID controller. On a desktop system this may be a PCI expansion card, PCI Express expansion card or built into the motherboard. Controllers supporting most types of drives may be used – IDE/ATA, SATA, SCSI, SSA, Fibre Channel, sometimes even a combination. The controller and disks may be in a stand-alone disk enclosure, rather than inside a computer. The enclosure may be directly attached to a computer, or connected via SAN. The controller hardware handles drive management and performs any parity calculations required by the chosen RAID level.

Hardware RAID Failures:

  • Actuator Failure
  • Bad sectors
  • Controller Failure
  • Controller Malfunction
  • Corrupted RAID
  • Lightning, Flood and Fire Damage
  • Damaged Motor
  • Drive physical abuse
  • Hard disk component failure and crashes
  • Hard disk drive component failure
  • Hard drive crashes
  • Hard drive failure
  • Head Crash
  • Intermittent drive failure
  • Media Damage
  • Media surface contamination
  • Multiple drive failure
  • Power Spike
  • Power Supply Burn out or failure
  • RAID controller failure
  • RAID corruption
  • RAID disk failure
  • RAID disk overheat
  • RAID drive incompatibility
  • RAID drive overheat
  • RAID Array failed
  • Vibration damage

Hardware RAID Failures(Human Error):

  • Unintended deletion of files
  • Reformatting of drives / Array
  • Reformatting of partitions
  • Incorrect replacement of media components
  • Accidentally deleted records
  • Mistaken overwritten database files
  • Employee sabotage
  • Lost/Forgotten password
  • Overwritten files
  • Overwritten RAID config files
  • Overwritten RAID settings
  • RAID incorrect setup
  • RAID user error

Software RAID implementations are now provided by many operating systems. Software RAID can be implemented as:

  • layer that abstracts multiple devices, thereby providing a single virtual device (e.g. Linux’s md).
  • a more generic logical volume manager (provided with most server-class operating systems, e.g. Veritas or LVM).
  • component of the file system (e.g. ZFS or Btrfs).

Software RAID Failures:

  • Back up failures
  • Computer virus and worm damage
  • Corrupt files / data
  • Damaged files or folders
  • Directory corruption
  • Firmware corruption
  • Repartition
  • Server registry configuration
  • Missing partitions
  • RAID configuration
  • Reformatting

Software RAID Failures(Application Failure)

  • Applications that are unable to run or load files
  • Corrupted files
  • Corrupted database files
  • Data corrupted
  • Locked databases preventing access
  • Deleted tables

About RAID Data Recovery

The majority of Small-to-Medium Enterprises across the globe have turned to RAID-configured systems for their storage solutions. The most frequently cited reasons for utilizing RAID Arrays in businesses today are the highly fault-tolerant level the solution offers and the cost effectiveness of acquisition and maintenance.

However, if a RAID Array does fail due to component malfunctions (including hard drives and controller cards) or operating and application corruption, it leaves the data unusable and in most cases corrupted.

RAID data recovery is an intricate task since RAID data configurations are often custom-built applications developed by competing manufacturers. Without in-depth knowledge of how RAID arrays are configured at both a hardware, firmware and software level, data recovery attempts will not only fail, but result in further data corruption.

RAID Controller Cards

December 23rd, 2009 Comments off
  • HighPoint Technologies
    Manufacturer of IDE and IDE-RAID controllers.
    www.highpoint-tech.com
  • ICP vortex
    Manufacturer of PCI-SCSI and PCI-Fibre Channel RAID disk array controllers.
    www.icp-vortex.com
  • Conduant Corporation
    Designs and manufactures digital disk-based data recording, FIFO, CPCI, and IDE RAID controller systems.
    www.conduant.com
  • Perceptive Solutions, Inc.
    Manufactures high performance RAID and caching disk controllers for SCSI and IDE.
    www.psidisk.com

To add your RAID Controller Cards here, please feel free to contact us!

RAID Systems Manufacturers

December 23rd, 2009 Comments off
  • Promise Technology, Inc.
    Designs and manufactures storage solutions using ATA/Serial ATA technology for fast, reliable data protection.
    www.promise.com
  • 3ware, Inc.
    Provides high-performance, scalable RAID storage solutions based on 3ware’s switched architecture.
    www.3ware.com
  • Ciprico, Inc.
    Designs, manufactures, markets, and services RAID disk arrays for high-performance imaging and digital media applications worldwide.
    www.ciprico.com
  • RAIDmax
    High performance RAID Systems by Netsource.
    www.raidmax.com
  • Arco Computer Products, Inc.
    Developing IDE disk mirroring solutions.
    www.arcoide.com
  • Storage Computer
    Provider of high-performance storage and data delivery systems.
    www.storage.com
  • Medéa Corporation
    Manufacturer of the VideoRaid family of disk arrays.
    www.medea.com
  • nStor
    Developer of storage-network based products and services.
    www.nstor.com
  • Advanced Computer & Network Corporation
    Designs, manufactures, and markets data storage RAID systems.
    www.acnc.com
  • Eurologic Systems Ltd
    RAID and storage arrays for the open systems market (HPUX,AIX,Digital UNIX, SunOS, Solaris, OpenVMS, NT, IRIX, Novell, etc.)
    www.eurologic.com
  • Open Storage Solutions
    www.openstore.com
  • RAID, Inc.
    Manufacturer of high performance RAID arrays backed by 24-hour service and support.
    www.raidinc.com
  • Bering Technology, Inc.
    Manufactures disk and tape storage solutions for HP computers.
    www.bering.com
  • Storage Engine
    Supplies products that store, protect, and manage data in complex networks.
    www.storageengine.com
  • Integrated Archive Systems, Inc.
    Provider of high availability and enterprise storage management solutions for UNIX and NT environments.
    www.iarchive.com
  • Inline Corporation
    www.inlinecorp.com
  • Zzyzx Peripherals
    Specializes in disk, tape backup, and network storage for Unix, Linux, Windows, and Netware environments.
    www.zzyzx.com
  • RAID Web [SPONSOR]
    High performance Arena RAID systems using inexpensive IDE and SCSI drives. Works with all operating systems. Division of Electronix Corporation.
    www.raidweb.com
  • Adjile Systems
    Manufacturing SCSI enclosures and RAID solutions. We can supply bare enclosure or fully integrated RAID Systems.
    www.adjile.com
  • MaxTronic International Co., Ltd
    Manufactures and distributes high-performance RAID solutions.
    www.maxtronic.com
  • Caen Engineering
    Manufacturer of custom design housing for SCSI hard disks, RAID enclosures, controllers and mass data storage devices specifically for the reseller and OEM.
    www.caeneng.com
  • Synetic Inc.
    Provides RAID products and solutions for businesses and systems professionals.
    www.synetic.net
  • Fibrenetix Storage Ltd
    Develops, manufactures, and supports the Zero-D range of high performance RAID products.
    www.zero-d.com
  • DataStor
    Offers external RAID and mass storage enclosure cabinets to house SCSI peripherals.
    www.dstor.com
  • RAIDking Technologies
    Offers modular, scalable, fault-tolerant RAID-based storage products.
    www.raidking.com
  • Storage Apps
    Provider of enterprise storage infrastructure products.
    www.storageapps.com
  • Dynamic Network Factory, Inc.
    Provider of network-attached storage and RAID systems.
    www.RAIDexpert.com
  • Conley
    High performance RAID storage management solutions for UNIX, NT and Macintosh platforms. Products include RAID subsystems and RAID related software.
    www.conley.com
  • MacRAID
    Offers the latest in data storage solutions for Mac Users. By RAIDking Technologies.
    www.macraid.com
  • Media Integration, Inc.
    Specializing in custom integration and support for SCSI and fibre channel RAID systems, DLT autoloaders and libraries, and servers.
    www.mediainc.com
  • Storagepath
    Specializing in high performance backplane enclosure systems for SCSI and RAID systems.
    www.storagepath.com
  • Kersey Tech, Inc
    Hot swappable and N+1 redundant power source for raid enclosures, and other RAID related products.
    www.kerseytech.com
  • IFT Europe Ltd.
    Manufactures RAID mass storage subsystems.
    www.iftraid.com
  • Accusys
    Manufacturer of high performance RAID controllers based on IDE/UltraDMA, SCSI, and Fibre channel technologies.
    www.accusysraid.com
  • Accordance Systems
    offers IDE-IDE Raid products.
    accordance.com.tw

To add your RAID System Manufactures Link here, please feel free to contact us!

WD Controllers Verified To Provide Visible RAID Volumes Greater Than 4 TB

July 15th, 2009 Comments off

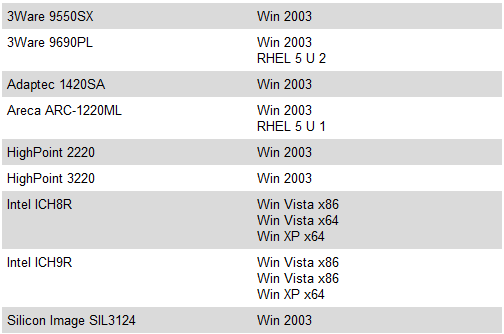

The list of controllers below has been verified to provide visible RAID volumes greater than 4 TB.


RAID 6 — Do you really like it?

June 5th, 2009 Comments off

RAID 6For several years now RAID 5 has been one of the most popular RAID implementations. Just about every vendor that supplies storage to enterprise data centers offers it, and in many cases it has become — deservedly – a well-trusted tool. RAID 5 stripes parity and blocks of data across all disks in the RAID set. Even though users now must devote about 20% of their disk space to the parity stripe, and even though read performance for large blocks may be somewhat diminished and writes may be slower due to the calculations associated with the parity data, few managers have questioned RAID 5’s usefulness.

There are however, two major drawbacks associated with using RAID 5. First, while it offers good data protection because it stripes parity information across all the discs within the RAID set, it also suffers hugely from the fact that should a single disc within the RAID set fail for any reason, the entire array becomes vulnerable — lose a second disc before the first has been repaired and you lose all your data, irretrievably.

This leads directly to the second problem. Because RAID 5 offers no protection whatsoever once the first disc has died, IT managers using that technology have faced a classic Hobson’s choice when they lose a disc in their array. The choices are these. Do they take the system off-line, making the data unavailable to the processes that require it? Do they rebuild the faulty drive while the disc is still online, imposing a painful performance hit on the processes that access it? Or, do they take a chance, hold their breath, and leave the drive in production until things slow down during the third shift when they can bring the system down and rebuild it without impacting too many users?

This choice, however, is not the problem, but the problem’s symptom.

The parity calculations for RAID 5 are quite sophisticated and time consuming, and they must be completely redone when a disk is rebuilt. But it’s not the sophistication of all that math that drags out the process, but the fact that when the disk is rebuilt, parity calculations must be made for every block on the disk, whether or not those blocks actually contained data before the problem occurred. In every sense, the disk is rebuilt from scratch.

An unfortunate and very dirty fact of life about RAID 5 is that if a RAID set contains, say, a billion sectors spread over the array, the demise of even a single sector means the whole array must be rebuilt. This wasn’t much of a problem when disks were a few gigabytes in size. Obviously though, as disks get bigger more blocks must be accounted for and more calculations will be required. Unfortunately, using present technology RAID recovery speed is going to be constant irrespective of drive size, which means that rebuilds will get slower as drives get larger. Already that problem is becoming acute. With half-terabyte disks becoming increasingly common in the data center, and with the expected general availability of terabyte-sized disks this fall, the dilemma will only get worse.

The solution offered by most vendors is RAID 6.

The vendors would have you believe that RAID 6 is like RAID 5 on steroids: it eliminates RAID 5’s major drawback – the inability to survive a second disk failure – by providing a second parity stripe. Using steroids of course comes with its own set of problems.

RAID 6 gives us a second parity stripe. The purpose of doing all of the extra math to support this dual parity is that the second parity stripe operates as a “redundancy” or high availability calculation, ensuring that even if the parity data on the bad disk is lost, the second parity stripe will be there to ensure the integrity of the RAID set. There can be no question that this works. Buyers should, however, question whether or not this added safety is worth the price.

Consider three issues. RAID 6 offers significant added protection, but let’s also understand how it does what it does, and what the consequences are. RAID 6’s parity calculations are entirely separate from the ones done for the RAID 5 stripe, and go on simultaneously with the RAID 5 parity calculations. This calculation does not protect the original parity stripe, but rather, creates a new one. It does nothing to protect against first disk failure.

Because calculations for this RAID 6 parity stripe are more complicated than are those for RAID 5, the workload for the processor on the RAID controller is actually somewhat more than double. How much of a problem that turns out to be will depend on the site and performance demands of the application being supported. In some cases the performance hit will be something sites will live with, however grudgingly. In other cases, the tolerance for slower write operations will be a lot lower. Buyers must balance the increased protection against the penalty of decreased performance.

Issue two has to do with the nature of RAID 5 and RAID 6 failures.

The most frequent cause of a RAID 5 failure is that a second disk in the RAID set fails during reconstruction of a failed drive. Most typically this will be due to either media error, device error, or operator error during the reconstruction – should that happen, the entire reconstruction fails. With RAID 6, after the first device fails the device is running as a RAID 5, deferring but not removing the problems associated with RAID 5. When it is time to do the rebuild, all the RAID 5 choices and rebuild penalties remain. While RAID 6 adds protection, it does nothing to alleviate the performance penalty imposed during those rebuilds.

Need a more concrete reason not to accept RAID 6 at face value as the panacea your vendor says it is?  Try this.

When writing a second parity stripe, we of course lose about the same amount of disk space as we did when writing the first (assuming the same number of disks are in each RAID group). This means that when implementing RAID 6, we are voluntarily reducing disk storage space to about 60% of purchased capacity (as opposed to 80% with RAID 5). The result: in order to meet anticipated data growth, in a RAID 6 environment we must always buy added hardware.

This is the point at which many readers will sit back in their chairs and say to themselves, “So what?  Disks are cheap!” And so they are — which naturally is one of the reasons storage administrators like them so much. But what if my reader is not in storage administrator? What if the reader is a data center manager, or an MIS director, or a CIO, or a CFO? In other words, what if my reader is as interested in operational expenditures as in the CAPEX?

In this case, the story becomes significantly different. Nobody knows exactly what the relationship between CAPEX and OPEX is in IT, but a rule of thumb seems to be that when it comes to storage hardware the OPEX will be 4-8 times the cost of the equipment itself. As a result, everybody has an eye on the OPEX. And these days we all know that a significant part of operational expenditures derives from the line items associated with data center power and cooling.

Because of the increasing expense of electricity, such sites are on notice that they will have to make do with what they already have when it comes to power consumption. Want to add some new hardware?  Fine, but make sure it is more efficient than whatever it replaces.

When it comes to storage, I’m quite sure that we will see a new metric take hold. In addition to existing metrics for throughput and dollars-per-gigabyte, watts-per-gigabyte is something on which buyers will place increased emphasis. That figure, and not the cost of the disk, will be a repetitive expense that managers will have to live with for the life of whatever hardware they buy.

If you’re thinking of adding RAID 6 to your data protection mix, consider the down-stream costs as well as the product costs.

Does RAID 6 cure some problems? Sure, but it also creates others, and there are alternatives worth considering. One possibility is a multilevel RAID combining RAID 1 (mirroring) and RAID 0 (striped parity), usually called either RAID 10 or RAID 1+0. Another is the “non-traditional” RAID approach offered by vendors who build devices that protect data rather than disks. In such cases, RAID 5 and 6 would have no need for all those recalculations required for the unused parts of the disk during a rebuild.
