Swap Western Digital Circuit Board 2060-701675-001 REV P1 to recover data from damaged hard drives due to PCB failure. 2060-701675-001 REV P1 is the board number on this PCB. If your HDD’s PCB has problems, the drive usually cannot boot up or there may be an inaccurate display in the BIOS of the hard drive’s information. Also power may not get to the hard drive and as a result it will not spin up.

Western Digital PCB 2060-701675-001 REV P1:

Board No.: 2060-701675-001 REV P1
Main Controller IC: 88i9045-TFJ2

Western digital pcb board 2060-701675-001 has 2 different types:

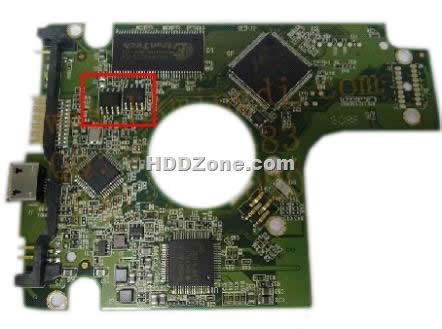

One has 2 BIOS, as the below photo:

When you swap this western digital PCB, you should move both the BIOS(U12&U14 chips) from your original wd PCB’s BIOS to the replacement board.

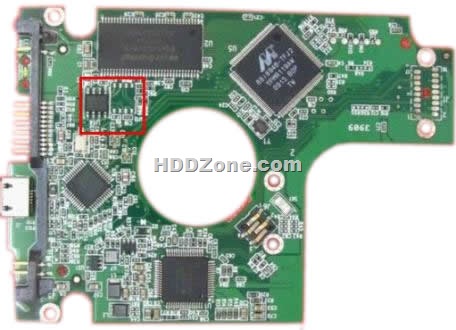

Other one just has 1 BIOS, as the below photo:

Western digital pcb 2060-701675-004 REV P1 also has the 2 different types as WD 2060-701675-001 REV P1 2.5″ one.

More Western Digital 2.5″ Laptop PCB please visit HDDzone.com.

Hard Disk Repair

Western Digital PCB (IDE Full Model)

DATARECOVERYUNION.COM13 years ago6 years ago03 mins

Buy Western Digital PCB(Printed Circuit Board) on HDDZone.com with low price, fast shipping and top-rated customer service! All kinds of Western Digital PCB for your Data Recovery Needs!

	WD IDE full board PCB 2060-001003-001 Board Number: 2060-001003-001 Main Controller IC: WD70C20-SW HDD Motor Combo IC: L6262 2.6
	WD IDE full board PCB 2060-001102-003 Board Number: 2060-001102-003 Main Controller IC: WD70C23-GP
	WD IDE full board PCB 2060-001128-005 Board Number: 2060-001128-005 Main Controller IC: WD70C22 GP ST1.3 HDD Motor Combo IC: L6278 1.2(E)
	WD IDE full board PCB 2060-001159-006 Board Number: 2060-001159-006 Main Controller IC: WD70C22-GP ST2.0/WD70C22-GP ST1.3 HDD Motor Combo IC: L6278 1.7E
	WD IDE full board PCB 2060-001173-004 Board Number: 2060-001173-004 Main Controller IC: WD70C22-GP ST2.0/WD70C22-GP ST1.3 HDD Motor Combo IC: L6282 3.2E
	WD IDE full board PCB 2060-001175-000 Board Number: 2060-001175-000 Main Controller IC: WD70C23-GP ST2.3 HDD Motor Combo IC: L6278AC
	WD IDE full board PCB 2060-001177-000 Board Number: 2060-001177-000 Main Controller IC: WD70C23-GP ST2.3 HDD Motor Combo IC: L6278AC
	WD IDE full board PCB 2060-001189-003 Board Number: 2060-001189-003 Main Controller IC: WD70C22-GP ST2.0/WD70C22-GP ST1.3 HDD Motor Combo IC: L6278 1.7E
	WD IDE full board PCB 2060-001265-001 Board Number: 2060-001265-001 Main Controller IC: WD70C26-GP ST2.1 HDD Motor Combo IC: L6283 1.3
	WD IDE full board PCB 2060-001266-000 Board Number: 2060-001266-000 Main Controller IC: WD70C26 ST2.1 HDD Motor Combo IC: L6283 1.3

Note: Hard drive failures are NOT always caused by circuit board failure. In most cases, you should exchange the BIOS chip before you swap the PCB. You should have certain technique.
