HDD Printed circuit board (PCB) with board number 2060-701336-003 is usually used on these Western Digital hard disk drives:
- WD2000JD-60KLB0, DCM DSBACAJCA, Western Digital 200GB SATA 3.5 Hard Drive;
- WD3200SD-01KNB0, DCM DSBACAJCA, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3000JD-00KLB0, DCM DSBHCAJCH, Western Digital 300GB SATA 3.5 Hard Drive;
- WD3200JD-22KLB0, DCM HSBACAJAA, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200JD-22KLB0, DCM DSBACAJCA, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200JD-00KLB0, DCM DSBHCAJCA, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200SD-01KNB0, DCM HSCHCAJCH, Western Digital 320GB SATA 3.5 Hard Drive;
- WD2000JD-60KLB0, DCM DSCACAJCH, Western Digital 200GB SATA 3.5 Hard Drive;
- WD3000JD-00KLB0, DCM DSBHCTJCH, Western Digital 300GB SATA 3.5 Hard Drive;
- WD3000JD-98KLB0, DCM DSBHCAJCH, Western Digital 300GB SATA 3.5 Hard Drive;
- WD3000JD-00KLB0, DCM DSCHCAJCA, Western Digital 300GB SATA 3.5 Hard Drive;
- WD3200JD-00KLB0, DCM HSBHCAJCH, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200JD-22KLB0, DCM HSBHCA2CH, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3000JD-19KLB0, DCM DSCHCAJCH, Western Digital 300GB SATA 3.5 Hard Drive;
- WD3200JD-00KLB0, DCM DSCHCAJCA, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200JD-22KLB0, DCM DSCHCAJCH, Western Digital 320GB SATA 3.5 Hard Drive;
- WD3200JD-00KLB0, DCM DSBHCAJCH, Western Digital 320GB SATA 3.5 Hard Drive
The 2060-701336-003 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

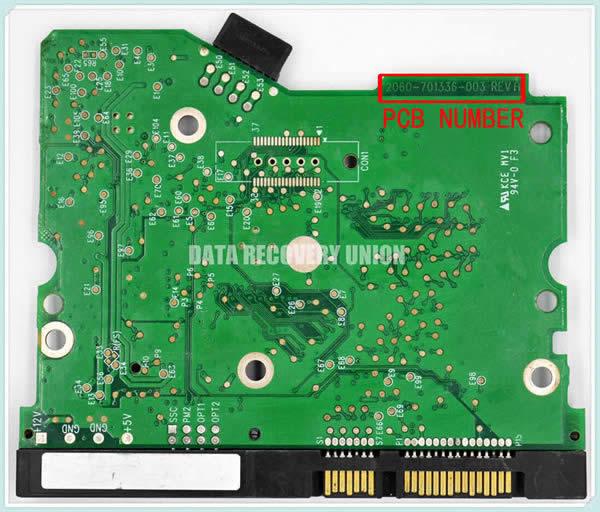

2060-701336-003 Western Digital PCB: Board Number
Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-701336-003 Western Digital PCB.

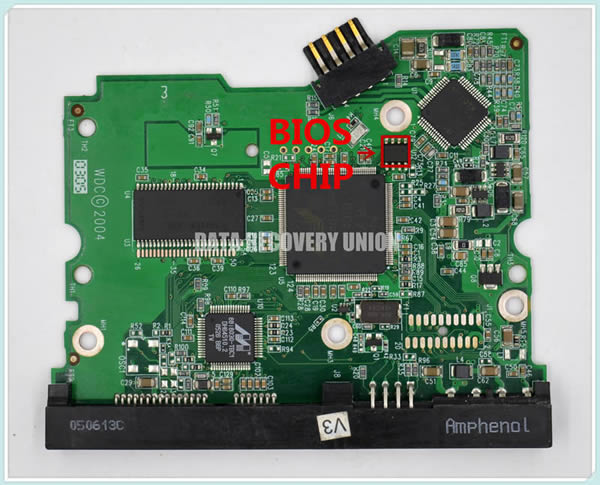

2060-701336-003 Western Digital PCB: BIOS Chip
The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-701336-003 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-701336-003 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-701336-003 Western Digital PCB.
2060-701336-003 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-701336-003 on it, good luck!
