HDD Printed circuit board (PCB) with board number 2060-701477-001 is usually used on these Western Digital hard disk drives:
- WD4000AAJS-00TKA0, DCM DHNCHV2CHB, Western Digital 400GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HHNCNV2CB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-75TMA0, DCM HHRCHV2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-22TMA0, DCM HANCHV2CAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-41TMA0, DCM HHNCNV2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HHNCNV2CH, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-65TMA0, DCM DHRCHV2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HANCNV2AAN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-22TMA0, DCM DHNCHV2CHN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HBNCNV2AB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM EHNCNV2AAN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD4000AAKS-00TMA0, DCM HBNCHV2CBB, Western Digital 400GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HARCHVJCAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-41TMA0, DCM DANCHV2CAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD4000AAJS-65TKA0, DCM HANCHV2CAB, Western Digital 400GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HBRCHVJCAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-75TMA0, DCM HANCNV2CAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-75TMA0, DCM HARCHV2CAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HARCHV2CBB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HHRCNV2CHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-22TMA0, DCM DHNCHV2AAN, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAJS-32TKA0, DCM HBRCNV2AB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000ABYS-01TNA0, DCM HANCHVJCAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAJS-00TKA0, DCM HBNCHV2ABB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HBRCNV2AAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD4000AAJS-00TKA0, DCM HHRCHV2AHN, Western Digital 400GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HBRCNV2CB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HANCNV2AA, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAJS-00TKA0, DCM HBNCHV2AB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-41TMA0, DCM DANCNV2CAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-22TMA0, DCM HANCHV2ABB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HBRCNV2AB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HANCHV2CBB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD4000AAKS-00TMA0, DCM HBNCNV2ABB, Western Digital 400GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HHNCNV2AHB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD4000AAJS-00TKA0, DCM DHNCNV2CHB, Western Digital 400GB SATA 3.5 Hard Drive;
- WD5000AAKS-65TMA0, DCM HANCHV2AAB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HBNCNV2ABB, Western Digital 500GB SATA 3.5 Hard Drive;
- WD5000AAKS-00TMA0, DCM HHNCHV2CH, Western Digital 500GB SATA 3.5 Hard Drive
The 2060-701477-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-701477-001 Western Digital PCB: Board Number

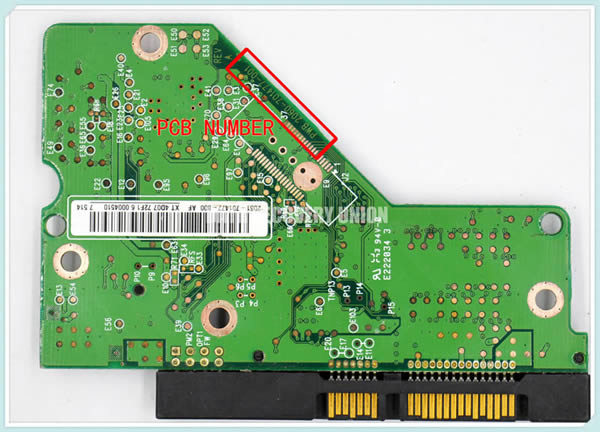

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-701477-001 Western Digital PCB.
2060-701477-001 Western Digital PCB: BIOS Chip

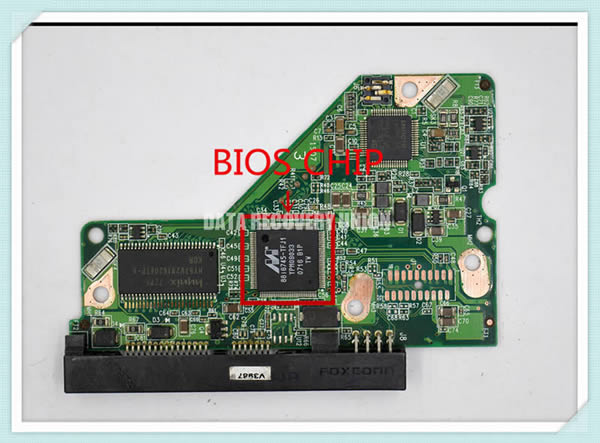

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-701477-001 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-701477-001 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-701477-001 Western Digital PCB.
