2060-701578-001 WD PCB Circuit Board

HDD Printed circuit board (PCB) with board number 2060-701578-001 is usually used on these Western Digital hard disk drives:

  • WD3200AAKS-00G3A0, DCM EHNNHT2AHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAJS-00G0A0, DCM HGRNHT2CHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAKS-00G3A0, DCM HGRNHT2AAN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAJS-00G0A0, DCM EHNNHT2AHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAKS-00G3A0, DCM DBNNHT2EHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAKS-00G3A0, DCM EHNNNT2EHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAKS-00G3A0, DCM HGRNNT2AHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAKS-00G3A0, DCM EHNNNT2AHN, Western Digital 320GB SATA 3.5 Hard Drive;
  • WD3200AAKS-00G3A0, DCM EHNNHT2CHN, Western Digital 320GB SATA 3.5 Hard Drive

The 2060-701578-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.

2060-701578-001 Western Digital PCB: Board Number

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-701578-001 Western Digital PCB.

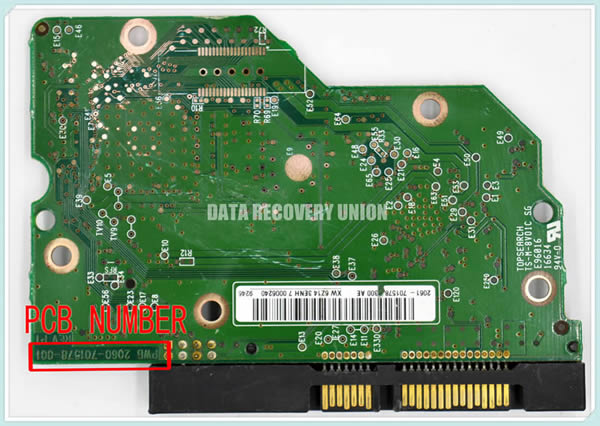

2060-701578-001 Western Digital PCB Board Number

2060-701578-001 Western Digital PCB: BIOS Chip

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-701578-001 Western Digital PCB.

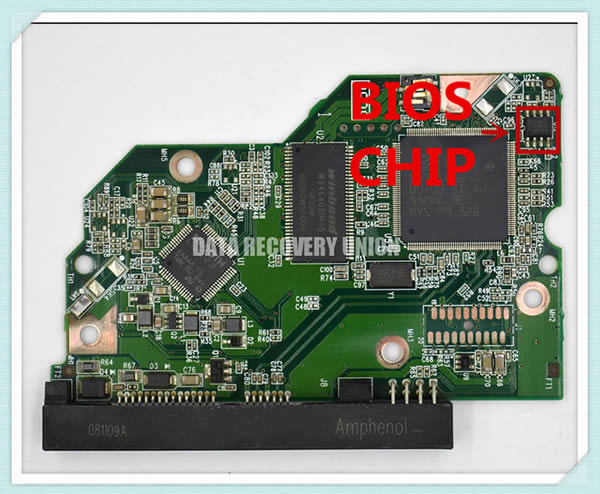

2060-701578-001 Western Digital PCB BIOS Chip.

BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.

PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers

2060-701578-001 Western Digital PCB: Repair Video

The following video from YOUTUBE shows the repair process of 2060-701578-001 Western Digital PCB.
