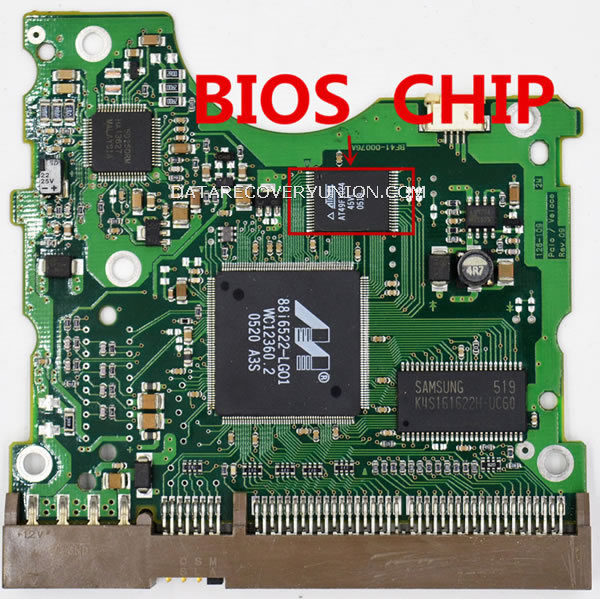

We first look at the following two pictures. Picture 1 is the “BIOS CHIP” of the circuit board. When we replace the PCB, we need to swap the “BIOS CHIP” with your original PCB.

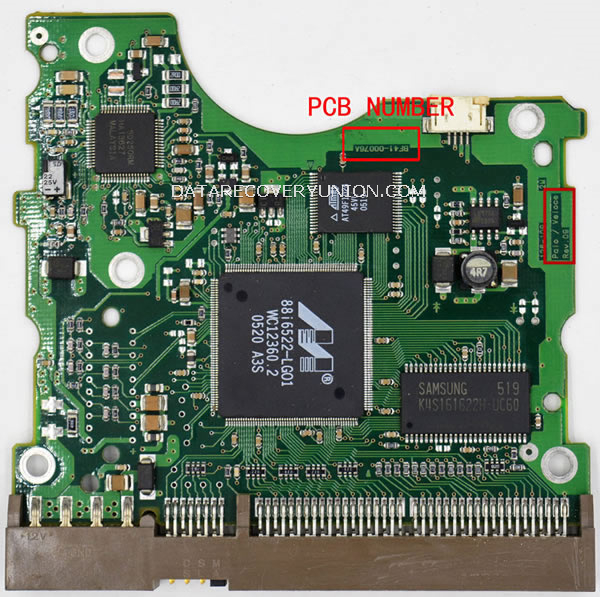

Picture 2 shows the “Board Number” of the board, and the “Board Number” must be the same!
FAQs of BF41-00076A PCB
- Samsung Spinpoint SP1604N
- Samsung IDE hard drive won’t spin up
Solutions of BF41-00076A PCB (Donor PCB)
- SAMSUNG PCB SP1203N BF41-00076A
- SP0802N SAMSUNG PCB BF41-00076A
- SP1203N SAMSUNG PCB BF41-00076A
- SP1604N SAMSUNG PCB BF41-00076A
- SP0802N, SP0802N, TK000-24, BF41-00076A, Samsung IDE 3.5 PCB
- SP1604N, SP1604N, TM100-30, BF41-00076A, Samsung IDE 3.5 PCB
- SP1604N, SP1604N, TM100-24, BF41-00076A, Samsung IDE 3.5 PCB
- SP0802N, SP0802N, 100-30, BF41-00076A, Samsung IDE 3.5 PCB
Note: When repairing a hard disk with a damaged circuit board, we must first ensure that the damage of the hard disk is caused by a circuit board failure. Usually it is relatively simple to replace the circuit board. The tools we need are heat guns, tweezers, etc., you can also find a local repair shop to help you complete this work.
