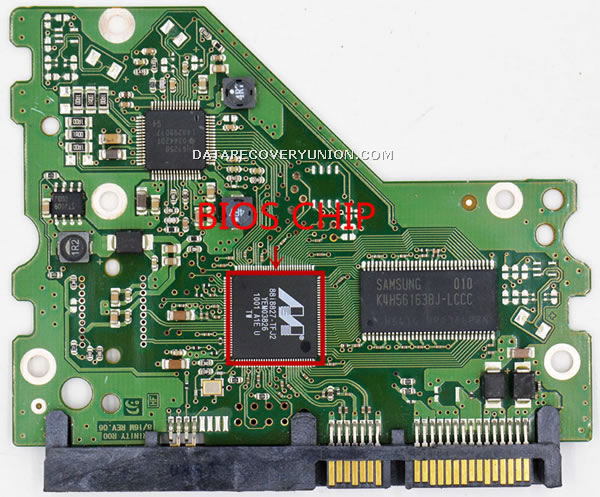

We first look at the following two pictures. Picture 1 is the “BIOS CHIP” of the circuit board. When we replace the PCB, we need to replace the “BIOS CHIP” with your original PCB.

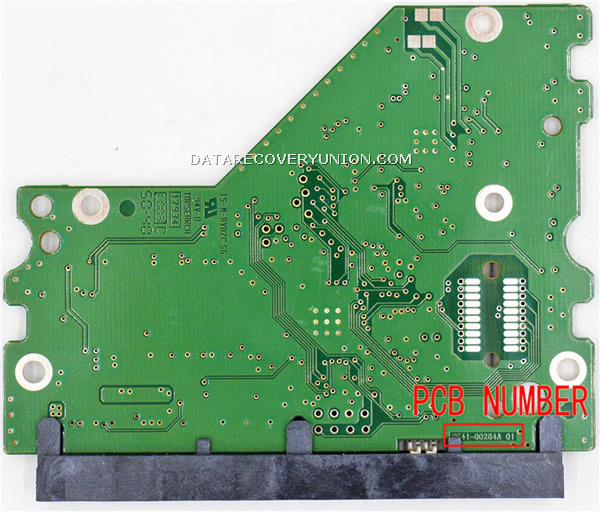

Picture 2 shows the “Board Number” of the board, and the “Board Number” must be the same!
FAQs ofBF41-00284A PCB
- Hot Swap for Samsung drive M8E Family
- Samsung Drive Dead (HD301SI)
- Broken 4R7 inductor on HD154UI (Samsung)
- HD154UI: Samsung Spinpoint F2 EcoGreen: PCB needed
- Samsung HD154UI PCB Required…
- Need A PCB for Samsung G3 HDD
- WANTED: PCB for SAMSUNG BF41 002841A 01
Solutions ofBF41-00284A PCB (Donor PCB)
- HD103SI Samsung PCB BF41-00284A
- HD103UJ Samsung PCB BF41-00284A
- HD154UI Samsung PCB BF41-00284A
- HD753LJ Samsung PCB BF41-00284A
- SAMSUNG PCB BF41-00284A
- PCB HD103UJ Samsung BF41-00284A 01 R00 TRINITY 8/16M REV.06
- PCB HD103SI/Y Samsung BF41-00284A 01 R00 TRINITY 8/16M REV.06
- PCB HD103SI Samsung BF41-00284A 01 R00 TRINITY 8/16M REV.06
- PCB HF154UI Samsung BF41-00284A 01 R00 TRINITY 8/16N REV.06
Note: When repairing a hard disk with a damaged circuit board, we must first ensure that the damage of the hard disk is caused by a circuit board failure. Usually it is relatively simple to replace the circuit board. The tools we need are heat guns, tweezers, etc., you can also find a local repair shop to help you complete this work.
