HDD Printed circuit board (PCB) with board number 2060-701675-001 is usually used on these Western Digital hard disk drives:
- WD2500BMVV-11DCLS0, DCM HHBVJHN, Western Digital 250GB USB 2.5 Hard Drive;
- WD10TMVV-11A27S2, DCM EHBVJHBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD6400BMVV-11A1CS0, DCM HHCVJHBB, Western Digital 640GB USB 2.5 Hard Drive;
- WD5000BMVV-11A1CS0, DCM HBCTJABB, Western Digital 500GB USB 2.5 Hard Drive;
- WD10TMVV-11A27S0, DCM EBCVJBBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10TMVV-11A27S0, DCM HBCVJHBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10TMVV-11A27S0, DCM HBCVJBBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10TMVV-11A27S2, DCM HBBVJHB, Western Digital 1TB USB 2.5 Hard Drive;
- WD2500BMVV-11DCLS0, DCM HHBVJHB, Western Digital 250GB USB 2.5 Hard Drive;
- WD10TMVV-11A27S0, DCM EHCVJHBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10TMVV-11A27S2, DCM HHBVJBBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10TMVV-11A27S2, DCM HHBVJBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD3200BMVV-11DCLS0, DCM HEBVJHNB, Western Digital 320GB USB 2.5 Hard Drive;
- WD3200BMVV-11A1CS0, DCM HBBTJBBB, Western Digital 320GB USB 2.5 Hard Drive;
- WD10TMVV-11A27S2, DCM EBBVJBNB, Western Digital 1TB USB 2.5 Hard Drive;
- WD6400BMVV-11A1CS0, DCM HACVJABB, Western Digital 640GB USB 2.5 Hard Drive;
- WD10TMVV-11A27S2, DCM HBBVJBBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD5000BMVV-11A1CS0, DCM HACTJABB, Western Digital 500GB USB 2.5 Hard Drive
The 2060-701675-001 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-701675-001 Western Digital PCB: Board Number

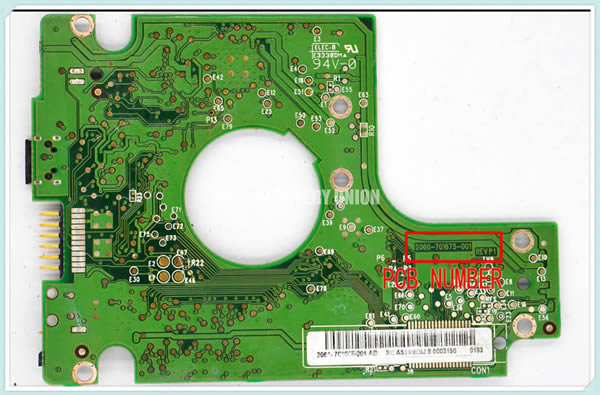

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-701675-001 Western Digital PCB.
2060-701675-001 Western Digital PCB: BIOS Chip

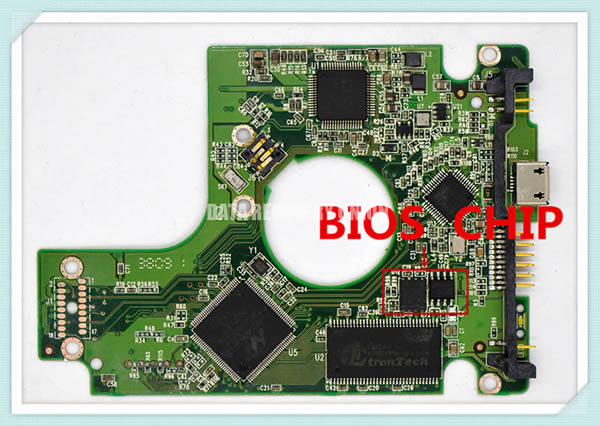

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-701675-001 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-701675-001 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-701675-001 Western Digital PCB.
2060-701675-001 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-701675-001 on it, good luck!
