HDD Printed circuit board (PCB) with board number 2060-701675-004 is usually used on these Western Digital hard disk drives:
- WD6400KMVV-11BG7S0, DCM HHBV2HN, Western Digital 640GB USB 2.5 Hard Drive;
- WD3200BMVV-11A1CS0, DCM HHNTJHN, Western Digital 320GB USB 2.5 Hard Drive;
- WD6400KMVV-11BG7S0, DCM HBBV2HB, Western Digital 640GB USB 2.5 Hard Drive;
- WD7500KMVV-11BG7S0, DCM HBBTJBBN, Western Digital 750GB USB 2.5 Hard Drive;
- WD2500BMVV-11A9MS0, DCM HHBVJHNB, Western Digital 250GB USB 2.5 Hard Drive;
- WD10TMVV-11BG7S0, DCM HBBVJHN, Western Digital 1TB USB 2.5 Hard Drive;
- WD6400KMVV-11BG7S0, DCM HBBV2BB, Western Digital 640GB USB 2.5 Hard Drive;
- WD2500BMVV-11GNWS0, DCM DVNTJBB, Western Digital 250GB USB 2.5 Hard Drive;
- WD3200BMVV-11GNWS0, DCM HANTJHN, Western Digital 320GB USB 2.5 Hard Drive;
- WD3200BMVV-11A1CS0, DCM HBNTJBB, Western Digital 320GB USB 2.5 Hard Drive;
- WD6400BMVV-11DYMS0, DCM HACVJHBB, Western Digital 640GB USB 2.5 Hard Drive;
- WD2500BMVV-11A9MS0, DCM HHBVJHB, Western Digital 250GB USB 2.5 Hard Drive;
- WD3200BMVV-11A9MS0, DCM HEBVJHBB, Western Digital 320GB USB 2.5 Hard Drive;
- WD10TMVV-11BG7S0, DCM HHBVJBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD2500BMVV-11A1CS0, DCM HBCVJHB, Western Digital 250GB USB 2.5 Hard Drive;
- WD3200BMVV-11GNWS0, DCM EANTJHN, Western Digital 320GB USB 2.5 Hard Drive;
- WD2500BMVV-11A9MS0, DCM HHBVJANB, Western Digital 250GB USB 2.5 Hard Drive;
- WD3200BMVV-11A1CS0, DCM HHNTJBN, Western Digital 320GB USB 2.5 Hard Drive;
- WD6400KMVV-11BG7S0, DCM HHBV2BB, Western Digital 640GB USB 2.5 Hard Drive;
- WD5000BMVV-11GNWS0, DCM HHNTJHB, Western Digital 500GB USB 2.5 Hard Drive;
- WD5000BMVV-11GNWS0, DCM HBNTJBB, Western Digital 500GB USB 2.5 Hard Drive;
- WD3200BMVV-11GNWS0, DCM HANTJVB, Western Digital 320GB USB 2.5 Hard Drive;
- WD6400KMVV-11BG7S0, DCM HHBVJHB, Western Digital 640GB USB 2.5 Hard Drive;
- WD2500BMVV-11A1CS0, DCM HANTJHB, Western Digital 250GB USB 2.5 Hard Drive;
- WD3200BMVV-11GNWS0, DCM EHNTJVN, Western Digital 320GB USB 2.5 Hard Drive;
- WD10TMVV-11BG7S0, DCM HHBVJBBN, Western Digital 1TB USB 2.5 Hard Drive;
- WD5000KMVV-11BG7S0, DCM HBBV2BB, Western Digital 500GB USB 2.5 Hard Drive;
- WD3200BMVV-11A1CS0, DCM HBCVJBN, Western Digital 320GB USB 2.5 Hard Drive;
- WD2500BMVV-11GNWS0, DCM HHNTJHB, Western Digital 250GB USB 2.5 Hard Drive;
- WD7500KMVV-11BG7S0, DCM EBBTJBNN, Western Digital 750GB USB 2.5 Hard Drive;
- WD10TMVV-11BG7S0, DCM EHBVJBBB, Western Digital 1TB USB 2.5 Hard Drive;
- WD10TMVV-11BG7S0, DCM HHBV2HNN, Western Digital 1TB USB 2.5 Hard Drive;
- WD3200BMVV-11A9MS0, DCM HHBVJHNB, Western Digital 320GB USB 2.5 Hard Drive;
- WD3200BMVV-11A9MS0, DCM HHBVJHBB, Western Digital 320GB USB 2.5 Hard Drive;
- WD3200BMVV-11A1CS0, DCM EBNTJBN, Western Digital 320GB USB 2.5 Hard Drive;
- WD6400KMVV-11BG7S0, DCM HHBVJBN, Western Digital 640GB USB 2.5 Hard Drive;
- WD3200BMVV-11A9MS0, DCM HEBVJHNB, Western Digital 320GB USB 2.5 Hard Drive
The 2060-701675-004 Western Digital PCB repair process can usually be divided into 2 steps: find a replacement PCB and firmware transfer.
2060-701675-004 Western Digital PCB: Board Number

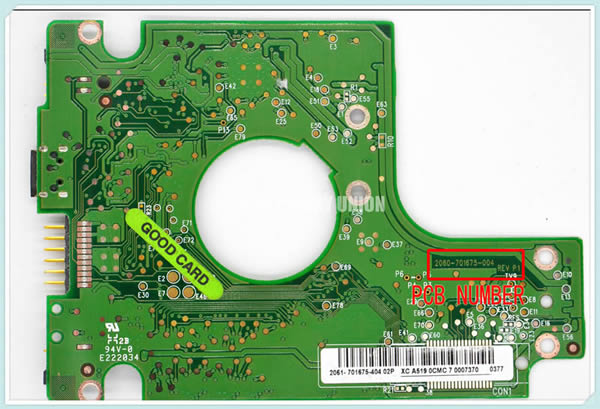

Finding a donor Western Digital PCB board is easy, you just need to open the hard drive and find the board number like “2060-*** on the board. The following picture shows the board number of 2060-701675-004 Western Digital PCB.
2060-701675-004 Western Digital PCB: BIOS Chip

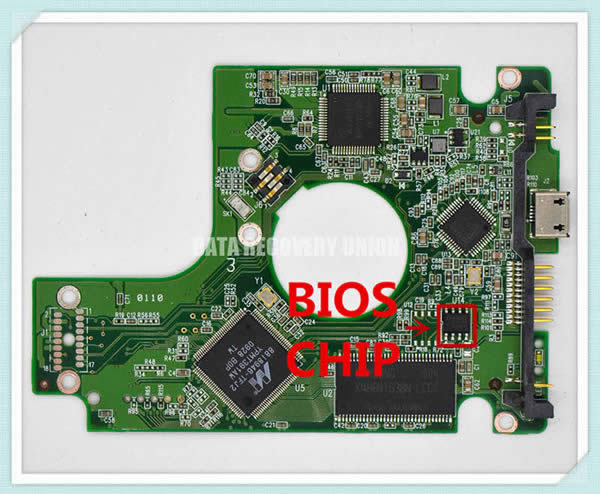

The BIOS chip on the PCB board is very easy to find. The 8pins chip is the BIOS chip. If the chip is not found on the board, you need to exchange the main chip (the largest chip). The following picture shows the BIOS chip of 2060-701675-004 Western Digital PCB.
.
BIOS chip holds unique data (firmware) required to access the hard drive system area. If PCB firmware is missing or incorrect, there is no access to the hard drive, and no access to user data, so the process of BIOS chip repalcement is also called firmware transfer.
PCB Board firmware transfer tool: hot-air gun, tweezers, screwdrivers
2060-701675-004 Western Digital PCB: Repair Video
The following video from YOUTUBE shows the repair process of 2060-701675-004 Western Digital PCB.
2060-701675-004 Western Digital PCB: PCB Supplier
HDDZone.com is a trusted hard drive pcb provider, you can find all kinds of hard drive pcb for data recovery need. You can search with the board number 2060-701675-004 on it, good luck!
