Data recovery on vintage hard drives like the Seagate ST320LT020 starts with identifying the failure type – electronic, firmware, or mechanical. Each requires a different approach, and misdiagnosis can make things worse. Here’s a quick guide to help you assess your situation and decide on the next step.

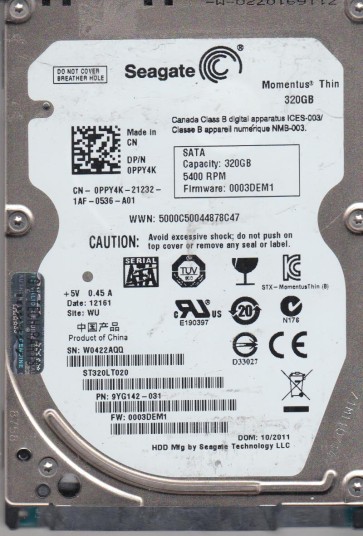

The Seagate ST320LT020 is a 2.5-inch 320GB SATA hard disk drive, typically found in laptops and external enclosures. It features a 5400 RPM spindle speed and uses perpendicular magnetic recording technology. Physically, it is a standard 9.5mm height drive with a single platter and two read/write heads due to its 320GB capacity (typically one platter with two sides). The drive uses a Marvell main controller and has a fluid dynamic bearing motor. Understanding that this drive is prone to specific head stiction issues and controller board failures is critical before attempting any recovery.
Identifying Common Failure Types
1. Physical Head Crash or Stiction: The ST320LT020 is known for head stiction where the heads stick to the platter surface after prolonged inactivity or physical shock. Symptoms include a ticking sound (click of death), a whirring sound with no spin-up, or the drive being completely silent when powered. This is a mechanical failure. 2. Bad Sectors and Reallocation: Due to its age and usage pattern, this drive develops growing bad sector lists. The OS may hang when trying to read files, show I/O errors, or the drive may appear with reduced capacity. In early stages, the drive may still spin and be detected but with significant slowness. 3. PCB (Printed Circuit Board) Failure: Common symptoms: the drive does not spin up at all, no sound, but might be detected as a “0 MB” drive or with a garbled model number. Often caused by voltage spikes or a failed preamplifier on the PCB. A visual inspection may reveal a burnt component near the power connector or SATA interface. 4. Firmware Corruption: The drive may spin up normally but become permanently busy, not respond to commands, or report a “wrong” capacity like 0MB or a garbled model string. This is a logic failure often manifesting after a bad sector handling event or power loss.
Potential Recovery Paths
Professional Services (Recommended for Physical Issues)
Class 100 Clean Room Recovery: For head crashes, stiction, or platter damage, a professional lab (like DriveSavers or Ontrack) is required. They can replace the read/write heads with a matching donor set from an identical ST320LT020 drive (firmware version must match). The cost ranges from $500 to $2000+ depending on the severity. They also use specialized tools like PC-3000 or DeepSpar to handle firmware issues. PCB Swap Service: If the PCB is burnt but the preamplifier on the heads is intact, a professional can remarry the controller board by either swapping the original ROM chip (8-pin serial flash) to the new PCB or by reprogramming the ROM using a tool like a TL866 programmer. Do not attempt a simple PCB swap at home without ROM transfer, as the data is encrypted or tied to the original firmware.
DIY Methods (For Logical/Firmware Issues Only)
Data Recovery Software: For bad sectors or logical file system corruption (NTFS errors), use read-only tools like R-Studio or DMDE. Create a full disk image first using a tool like ddrescue (Linux) or HDDSuperClone (Windows bootable) which skips bad sectors. Use the image file for recovery to avoid further stress on the drive. Firmware Repair (Advanced): If you have a PC-3000 UDMA or similar hardware tool, you can attempt to repair the translator or module 02 (SA defect list) on the ST320LT020. This is extremely risky for the non-professional. Another method: if the drive is detected but has a “capacity 0” issue, sometimes a firmware reset via the Seagate terminal (using a USB-TTL adapter) can fix it. Command: /2 (to change to utility mode) then “m0,2,2,0,0,0,0,22” (clears translator). Warning: This erases all user data permanently if done incorrectly.
What Not to Do
Never open the drive enclosure. The ST320LT020 has a single platter sealed with a filter. Exposing the platter to even a single dust particle will cause fatal scratches and irreversible data loss. Do not attempt to power cycle repeatedly. If you hear clicking, immediately cut power. Repeated cycling can physically damage the heads and platter surface. Do not use chkdsk /f or any repair tool on a failing drive. This forces the drive to attempt to read bad sectors, stressing the heads and potentially turning recoverable soft bad sectors into hard physical damage. Do not freeze the drive. Thermal expansion differentials can cause platter warping or head movement, making data recovery impossible. Do not swap the PCB without transferring the ROM chip. Each Seagate ST320LT020 PCB is locked to its own firmware. Swapping bare PCBs will result in no spin-up or partial read failures.
Summary
The Seagate ST320LT020 is a reliable but aging laptop drive with three primary failure modes: head stiction (mechanical), bad sectors (logical/physical), and PCB or firmware corruption. For any physical or complex firmware issues, professional recovery is mandatory. For simple logical failures (bad sectors on a spinning drive), use advanced disk imaging software with error skipping like ddrescue. Never attempt physical disassembly or risky software repairs like chkdsk. Always prioritize making a sector-by-sector image onto a healthy drive before any recovery attempts. The key to success is early intervention and avoiding any action that could physically damage the platters.
