Data recovery on vintage hard drives like the Seagate ST3750840AS starts with identifying the failure type – electronic, firmware, or mechanical. Each requires a different approach, and misdiagnosis can make things worse. Here’s a quick guide to help you assess your situation and decide on the next step.

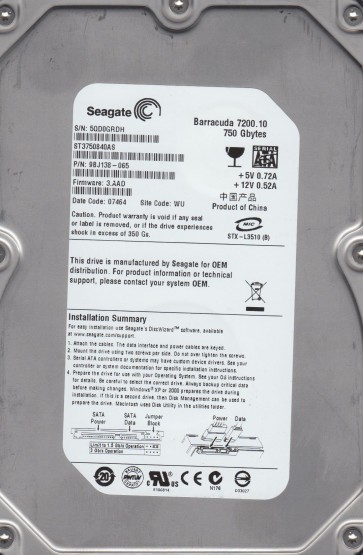

The Seagate ST3750840AS is a 750GB, 3.5-inch SATA hard drive from the Barracuda 7200.10 family. It operates at 7200 RPM with a 16MB cache and uses a four-platter, eight-head design. This drive is known for its high capacity for its era and is commonly found in desktop PCs and external enclosures from the late 2000s. Its age and mechanical complexity make it susceptible to several failure modes, including head crashes, firmware corruption, and stiction. The eight-head design means head replacement is a complex and expensive procedure requiring professional cleanroom services.
Common Failure Types
1. Mechanical Failure (Head Crash)
Symptoms: Loud clicking, scraping, or grinding noises; drive not spinning; no power response.
Cause: Physical damage from drops, shock, or wear over time causes the read/write heads to contact the platter surface. This is an eight-head drive, making head failure more likely and recovery more complex.
2. Firmware Corruption
Symptoms: Drive not recognized, frequent disconnections, clicking sounds, or incorrect capacity display (e.g., 0GB or 32MB).
Cause: This model is known for firmware issues, particularly corruption of the translator module or Service Area modules. This can occur due to sudden power loss or voltage fluctuations.
3. Stiction (Head Sticktion)
Symptoms: Drive fails to spin up, makes a quiet buzzing or tapping sound, or is completely silent when powered on.
Cause: The read/write heads become stuck to the platter surface, preventing the motor from rotating the disks. This is a known mechanical failure in older Seagate drives.
4. Logic Board (PCB) Failure
Symptoms: Drive completely dead (no spin, no detection). Burn marks or damaged components visible on the circuit board.
Cause: Power surge, static discharge, or component aging can damage the drive’s controller chip or TVS diode.
5. Bad Sectors / Media Degradation
Symptoms: Slow read/write speeds, missing files, system freezes, SMART errors like Reallocated Sectors or Current Pending Sectors.
Cause: Physical damage to the magnetic coating on the platters from age, head contact, or contamination.
Potential Recovery Paths
DIY Methods (For Low-Risk Situations Only)
For logical damage: Use tools like ddrescue or HDDSuperClone to create a sector-by-sector image to a healthy drive. After imaging, use file recovery software like R-Studio or UFS Explorer. Avoid running chkdsk or fsck on the failing source drive.
For PCB failure: Match the exact PCB number and perform a ROM swap. Seagate drives store unique adaptive data in an 8-pin flash memory chip. A simple board swap without transferring this chip will fail. The ROM chip must be moved to the donor board using a hot air rework station.
Professional Services (For Critical or High-Risk Cases)
For head crashes, stiction, or grinding noises: Professional cleanroom service is required to replace the read/write heads. This is an eight-head drive, making the procedure complex and expensive.
For firmware corruption: Professional tools like PC-3000 or MRT are needed to access the System Area, repair corrupt modules, and rebuild the translator.
What Not to Do
1. Do not open the drive’s sealed enclosure. Even a single dust particle will destroy the platters and data.
2. Do not use chkdsk /f, fsck, or reformat on a drive making unusual noises or with bad sectors.
3. Do not shock, shake, tap, or freeze the drive.
4. Do not attempt a generic PCB swap without transferring the firmware chip.
5. Do not repeatedly power cycle the drive if it is stuck or making noises.
Summary
The Seagate ST3750840AS is a high-capacity drive with eight heads, making recovery complex and expensive. For logical issues, DIY imaging with ddrescue is possible if the drive is detected and makes no unusual noises. For any clicking, grinding, dead drive, or detection issues, professional cleanroom recovery is required. Professional costs typically range from $500 to $2000+ depending on the severity.
