Free Raid Data Recovery Software – ReclaiMe Free RAID Recovery

Free RAID recovery software to recover RAID 0, RAID 5, RAID 0+1, and RAID 1+0. Recovers array parameters such as disk order and parity location.

ReclaiMe Free RAID RecoveryFile Name: ReclaiMe Free RAID Recovery
Publisher: Reclaime.com
Raid Supported: RAID 0, RAID 5, RAID 0+1, RAID 1+0
Price: Free

What can ReclaiMe Free RAID Recovery Do?

1. Recover the following RAID parameters:

  • Start offset and block size;
  • Number of member disks;
  • Member disks and data order;
  • Parity position and rotation;

2. Once you recovered the parameters, you can

  • Run ReclaiMe data recovery software to recover data from the array;
  • Create the array image file;
  • Write the array to disk;
  • Save layout to the XML file;

How to recover RAID data by using ReclaiMe Free RAID Recovery?

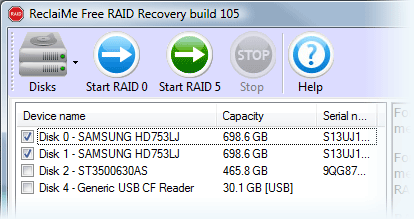

1. Download, install, and launch ReclaiMe Free RAID Recovery software.
2. If it is needed, open or create disk image files of the member disks using the Disks button.
3. Decide on the type of your array

  • For RAID 0 select a minimum of two devices from the list and click Start RAID 0
  • For RAID 0+1 and 1+0, select all the available member disks and click Start RAID 0. It is required to select a minimum of two disks.
  • For RAID 5, select all the available member disks and click Start RAID 5. Minimum of two disks is required. ReclaiMe Free RAID Recovery software can recover RAID 5 with one disk missing.

4. Wait until the program completes detecting the parameters. It can take from a couple of minutes to several hours. The process completes when either Scan progress or Confidence is completely filled. Note that Scan progress always grows while Confidence may decrease.
5. At the step all the parameters have been already restored. Then you can select:

  • Run ReclaiMe to recover data. If ReclaiMe data recovery software has been already installed on the computer, then it is launched in RAID recovery mode and displays the partitions on the array. If you do not have ReclaiMe, you will be offered to download ReclaiMe data recovery software.
  • Save layout to the XML file. Save the recovered array parameters to the file in XML format. Note that you can open this file in ReclaiMe and start to recover data off the array using ReclaiMe RAID recovery mode.
  • Use with other data recovery software. Provides step-by-step instructions on how to transfer the recovered parameters to certain well-known data recovery tools. Note that the instructions are created for each particular case of RAID and you should follow them exactly. Should the need arise, the instructions can be copied to the clipboard using Copy to the clipboard button.

Before you start your RAID recovery, please consider the following:

  • If one of the member disks of RAID 5 or RAID 0+1 is physically damaged (produces unusual sounds, e.g. clicking or repeated spin-up and spin-down sounds), don’t use this disk for the recovery.
  • If you cannot avoid using a physically damaged disk, say, for RAID 0 recovery, try to create the disk image file – use Create disk image under Disks on the toolbar in ReclaiMe Free RAID Recovery software.
  • If you have a hardware RAID, you should
    1. Clearly label the member disks, the cables, and the controller ports, so that the original setup can be reassembled if need be.
    2. Disconnect the array member disks from the RAID controller and then attach them as a separate/standalone disks to a non-RAID controller. ReclaiMe Free RAID Recovey needs to access the disks separately to be able to reconstruct RAID parameters.
  • If you plan to recover data once the RAID parameters are restored, prepare a free disk space equal to the amount of data which you are going to recover.

Related Links:

  • Download: http://www.reclaime.com/dl/setup-raid-recovery.exe
  • Software Details: http://www.freeraidrecovery.com/Default.aspx

Recommended RAID Recovery Shareware: Getway RAID Recovery Software

Read More

Raid Data Recovery Software: ZAR

zar File Name: ZAR
Version: 8.4
Publisher: Zero Assumption Recovery
Raid Supported: RAID 0, RAID 5
Analyze Mode: Manual Mode
Price: US $99.00

What can ZAR Do?
This tutorial describes the data recovery procedure used to recover a RAID 0 or RAID 5 array if
* the controller failed and the array parameters are lost
* Windows software-based RAID configuration data is damaged

Download: http://www.z-a-recovery.com/download.htm
Buy: http://www.z-a-recovery.com/register.htm

Read More

Raid Data Recovery Software: R-STUDIO Network Edition

Raid Recovery Presentation File Name: R-STUDIO Network Edition
Version: RAID-0 Version/RAID-5 Version
Publisher: R-tools Technology Inc
Raid Supported: RAID 0, RAID 1, RAID 5
Analyze Mode: Manual Analysis
Price: $179.00

What can RAID Recovery Presentation do?

R-Studio detects and treats valid software or hardware RAIDs as regular drives/volumes. But what to do if you have only drives or drive images of a faulty RAID? R-Studio can still help you to get the data back provided that the drives necessary for the RAID to operate are working or you have the images of those drives. The number of drives enough to get data back depends on the RAID layout. For example, for a mirror (RAID 1) of two drives, at least one must be valid, whereas for a RAID5 of 3 disks, the number of valid drives should be two.

Download:
http://www.data-recovery-software.net/Data_Recovery_Download.shtml

Buy:
https://secure.r-tt.com/cgi-bin/Store?p=1

Read More

Raid Data Recovery Software: Getway Raid Recovery

Getway Raid Recovery File Name: Getway Raid Recovery
Version: 2.0
Publisher: Getway Recovery Ltd
Raid Supported: RAID 0, RAID 5, Raid 5E, Raid 5EE, Raid 6
Analyze Mode: Smart Mode,Manual Mode, User-defined Mode
Price: US $179.00

What can Getway Raid Recovery Do?
Getway Raid Recovery Software can help you recover data due to the following possible data loss situations: File Deletion; Accidental Array Format; MBR damage/ loss/ excursion; DBR damage; One or two RAID hard disk damage, etc. Getway Raid Recovery Software support “Smart Mode”, “Manual Mode” and ” User-defined Mode ” working modes.

Download:http://www.getwayrecovery.com/downloads/GetwayRaidRecovery.zip
Buy: http://www.getwayrecovery.com/purchase.html

Related Links:

  • Raid 5 Recovery Case Study
  • Raid 5EE Recovery Case Study
  • Find Out Raid Disk Order By 3 Steps
  • Screenshots Of Getway Raid Recovery Software
  • Online Manual Of Getway Raid Recovery Software
Read More

Raid Data Recovery Software: DiskInternals Raid Recovery

diskinternalsraidrecoveryFile Name: DiskInternals Raid Recovery
Version: 1.5
Publisher: DiskInternals Research
Raid Supported: RAID 0, Raid 1, JBOD, RAID 5, 0+1, Dynamic Disks
Analyze Mode: Automatic and manual mode
Price:Personal License ($249.95 USD) Business License ($499.95 USD)

What can DiskInternals Raid Recovery Do?
• Recover damaged raid arrays
• Recover files from damaged disks
• Recover files from inaccessible drive
• Recover corrupt or damaged partition table.
• Restore disks after crash
• Unformat NTFS drives
• Recover files deleted by accident
• Recover Photos from the erased or formatted media
• Undelete files deleted from the Recycle Bin.

Download: http://www.diskinternals.com/download/Raid_Recovery.exe
Buy: http://www.diskinternals.com/order/raid.shtml

Read More
