How to Overcome GPT Protective Partition Issues

May 6th, 2010

GPT Protective Partition Issues What is a GPT disk?
The GUID Partition Table (GPT) was introduced as part of the Extensible Firmware Interface (EFI) initiative. GPT provides a more flexible mechanism for partitioning disks than the older Master Boot Record (MBR) partitioning scheme that has been common to PCs.

A partition is a contiguous space of storage on a physical or logical disk that functions as though it were a physically separate disk. Partitions are visible to the system firmware and the installed operating systems. Access to a partition is controlled by the system firmware before the system boots the operating system, and then by the operating system after it starts.

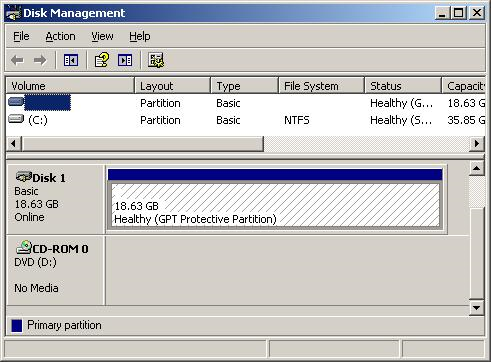

Problem: When connecting an internal and/or and external hard drive to a Windows XP (or newer), 32-bit Operating System, the drive is inaccessible and Disk Management reports that the drive has a GPT Protective Partition on it. The drive cannot be repartitioned and formatted in this state.

Cause:The internal or external hard disk was previously prepared on either a Windows or Macintosh computer with a GPT partition.

Solution: Normal Disk Management facilities will not overcome this issue. To prepare this drive, you will need to use the Windows diskpart command-line utility. The following procedure provides the steps for cleaning a GPT Protective Partition from a hard disk drive connected to an existing Windows XP (or newer), 32-bit Operating System.

Note: This is a data destructive process. This procedure not only removes the drive’s partition, but also removes the Drive Signature. It is highly recommended that you backup any/all critical data on the drive before proceding. Secondly, you may wish to open Disk Management and document the Disk Number of the drive containing the GPT Protective partition…you will need this information later in the procedure.

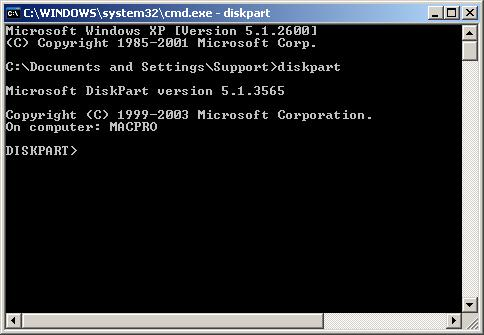

1. Open a Command Window. From the command prompt, type diskpart and press enter. The diskpart prompt will open.

GPT Protective Partition

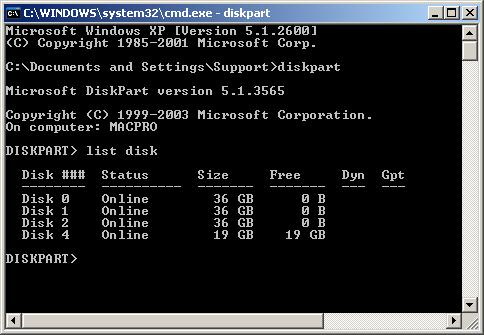

2. From the diskpart prompt, type list disk and press enter. A list of disks will appear in a text format. You will return to the diskpart prompt.

GPT Protective Partition

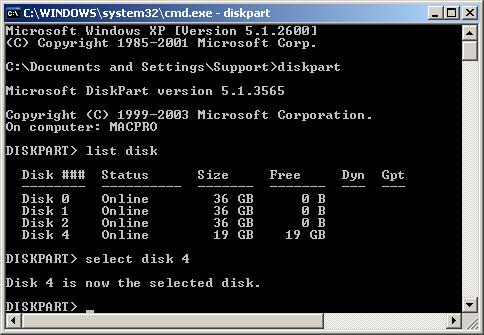

3. From the diskpart prompt, type select disk disknumber (for instance, if the disk containing the GPT Protective partion is Disk 4, you would type select disk 4)and press enter. A message appears saying that the disk is selected. You will return to the diskpart prompt.

GPT Protective Partition

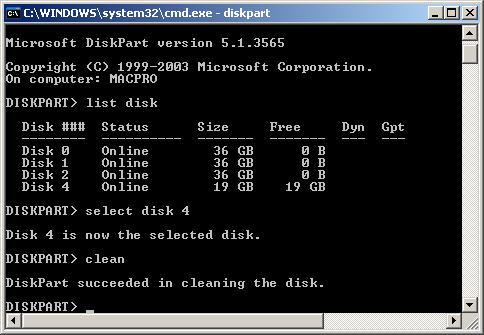

4. From the diskpart prompt, type clean and press enter. At this point the drive’s partition and signature a removed. You will return to the diskpart prompt.

GPT Protective Partition

5. From the diskpart prompt, type exit and press enter. Type exit once more to close the Command Window.

At this point, the internal and/or external drive can be re-initialized, partitioned and formatted. Launch Disk Management…to initialize the disk:

  • Use the Initialize and Convert Disk Wizard-OR-
  • Close the Wizard, right-click on the disk in question and select Initialize Disk from the drop-down menu.

Once the drive is initialized, continue using Disk Management to partition and format the drive.
