Maxtor DiamondMax Plus 9 PCB Circuit Boards

June 15th, 2012

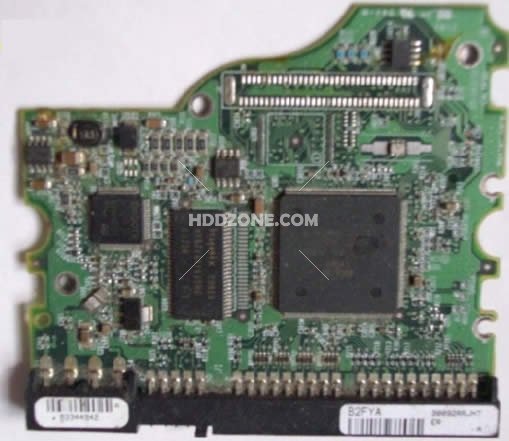

Maxtor DiamondMax Plus 9 PCB Circuit Boards Swap/Replacement for Data Recovery Needs.

Maxtor DiamondMax Plus 9 PCB Hello! Do you have a PCB in stock that will work with my specifications?
MAXTOR DIAMONDMAX 9 120GB
Code: YAR41BW0
Model: 6Y120P0-131211
Chip: Ardent C5-C1 040111500
An 8-pin chip is PRESENT at the opposite end of board from the connectors.

I believe this is the PCB board is the one that I need but I can’t locate
“motor combo #”.  Maxtor 040111300 DiamondMax Plus 9 PCB
Maxtor ARDENT C8-C1 040111300 DiamondMax Plus 9 PCB
Main Controller IC: ARDENT C8-C1 040111300
HDD Motor Combo IC: L7250E 1.2

I have a Maxtor 0401115000 DiamondMax Plus 9, my question is that you have has a HDD Motor Combo IC: L7250E 1.2, On my drive it
is L7250E 1.0, Are they compatible, and will they interchange? I do know
that this would be my gamble but I would like to know as much as possible
before putting out the money. Thank you, Clyde.

Im trying to get a replacement board for my Maxtor DiamondMax Plus 9 – 80 Gb
The closest I can find is;
Maxtor Ardent C5-C1 040111500 DiamondMax Plus 9 PCB
Main Controller IC: Ardent C5-C1 040111500
HDD Motor Combo IC: L7250E 1.2
Everything else matches but the HDD Motor Combo IC on mine is;
HDD Motor Combo IC: L7250E 1.0
Will this make a difference or will I still be able to use the board
available from you to retrieve the data on this disk?
Many thanks
