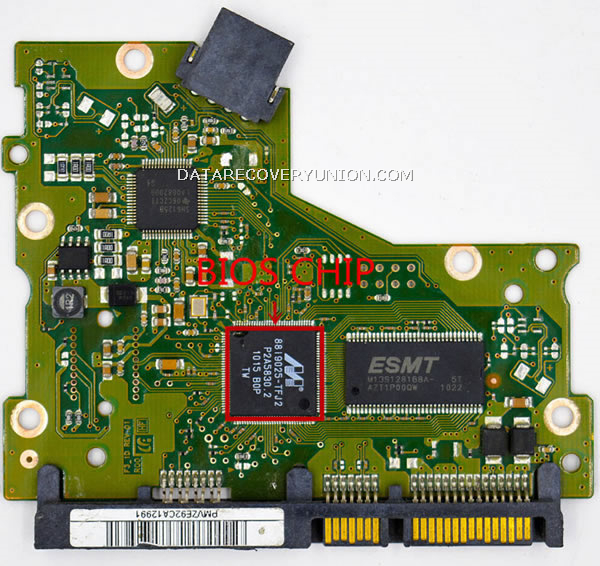

We first look at the following two pictures. Picture 1 is the “BIOS CHIP” of the circuit board. When we replace the PCB, we need to replace the “BIOS CHIP” with your original PCB.

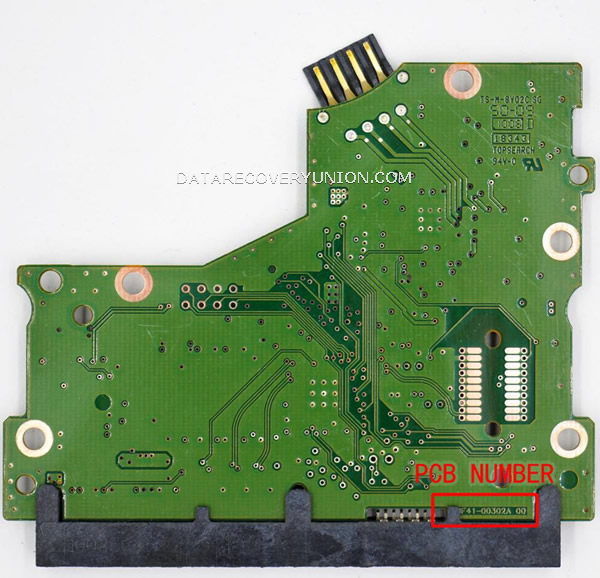

Picture 2 shows the “Board Number” of the board, and the “Board Number” must be the same!
FAQs ofBF41-00302A PCB
- Hot Swap for Samsung drive M8E Family
- HD503HI ROM
- Requesting help with Samsung F3 drive :
Solutions ofBF41-00302A PCB (Donor PCB)
- HD163GJ Samsung PCB BF41-00302A 00
- HD253GJ Samsung PCB BF41-00302A 00
- HD254GJ Samsung PCB BF41-00302A 00
- HD25GJ Samsung PCB BF41-00302A 00
- HD502HI Samsung PCB BF41-00302A 00
- PCB HD253GJ/D Samsung F3_1D REV.01 R00 1AJ10001
- PCB HD502HJ/D Samsung F3_1D REV.01 R00 1AJ10001
- PCB HD502HJ/B Samsung F3_1D REV.01 R00 1AJ10002
Note: When repairing a hard disk with a damaged circuit board, we must first ensure that the damage of the hard disk is caused by a circuit board failure. Usually it is relatively simple to replace the circuit board. The tools we need are heat guns, tweezers, etc., you can also find a local repair shop to help you complete this work.
